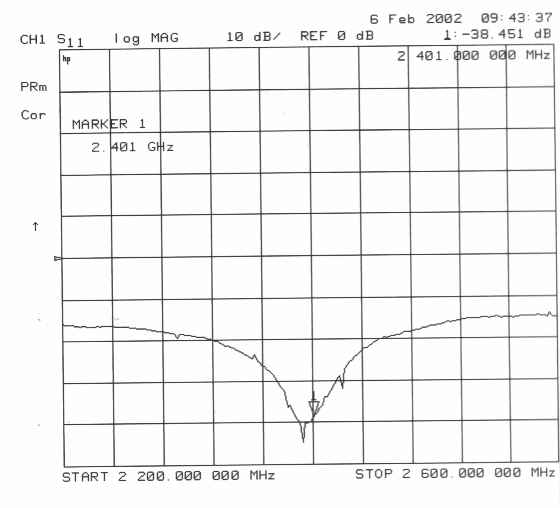

2,401 Ghz source for the parabola

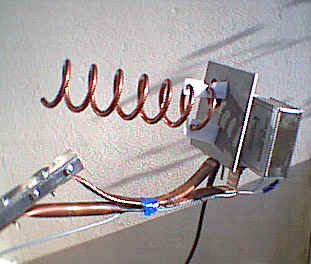

Helix antenna 6,5 turns left circular polarization

10X10 cm reflector
Helix diameter 40 mm
Wire diameter 6 mm
Spacing between turns 27 mm

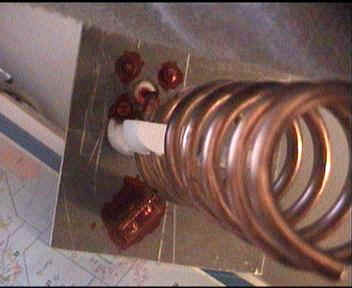

Helix mount in teflon

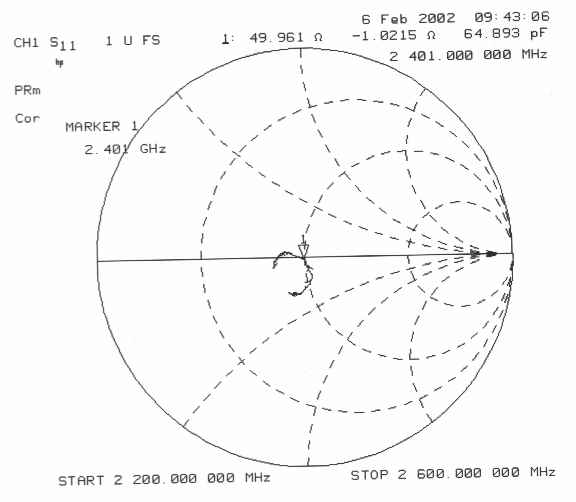

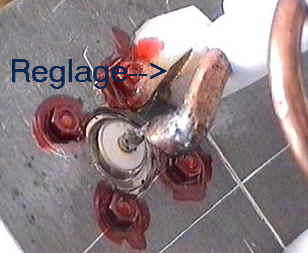

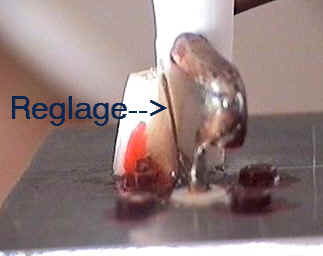

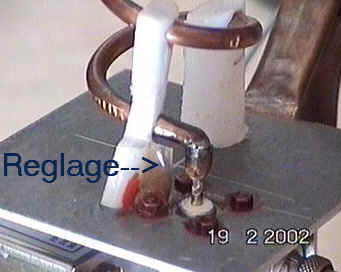

Tunning plate 17 mm X 8 mm
 Helix/reflector spacing 15 mm



Other tunning system

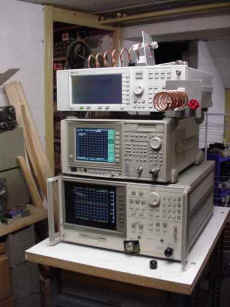

I have built 2 helix anennas,
one in left circular polarizition
and the other in right polarization.
The tunning has been done by two
different ways.

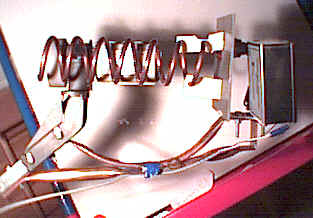

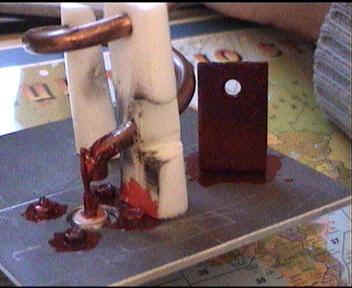

A corner plate was placed close to the 1/4
of the first turn
The tunning is done by the spacing
of the corner plate with regards of the coil.
The corner plate is fasten to the ground.

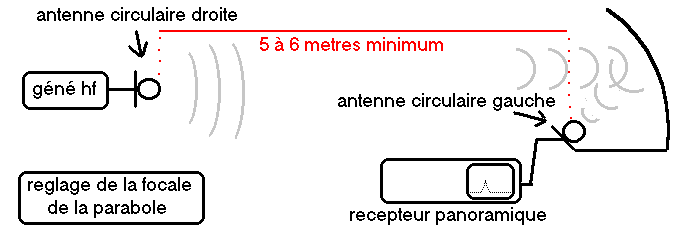

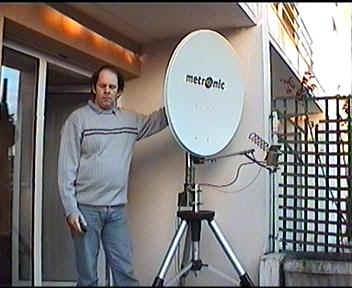

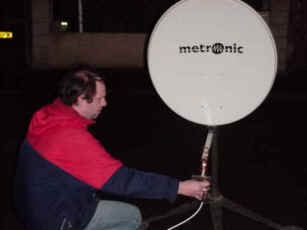

Here is a solution to determine the focal point of the parabola wtih the

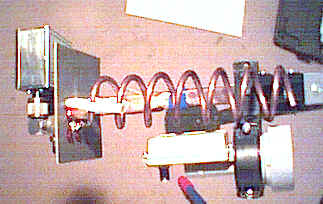

original 12 Ghz head mounted along the helix.
See below the used method
